Feniex 4200 Data-Link Controller
Expected Delivery: 2–5 business days

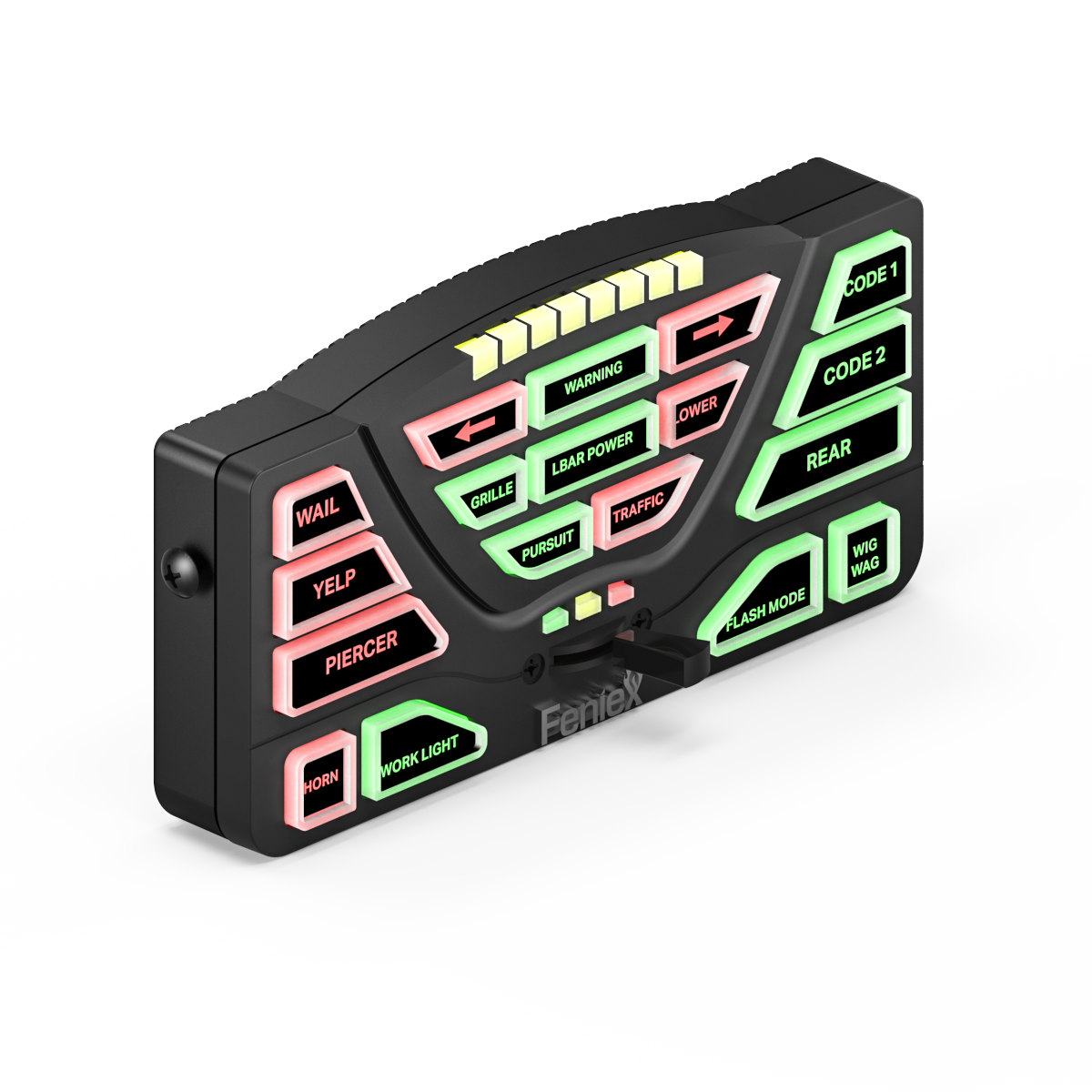

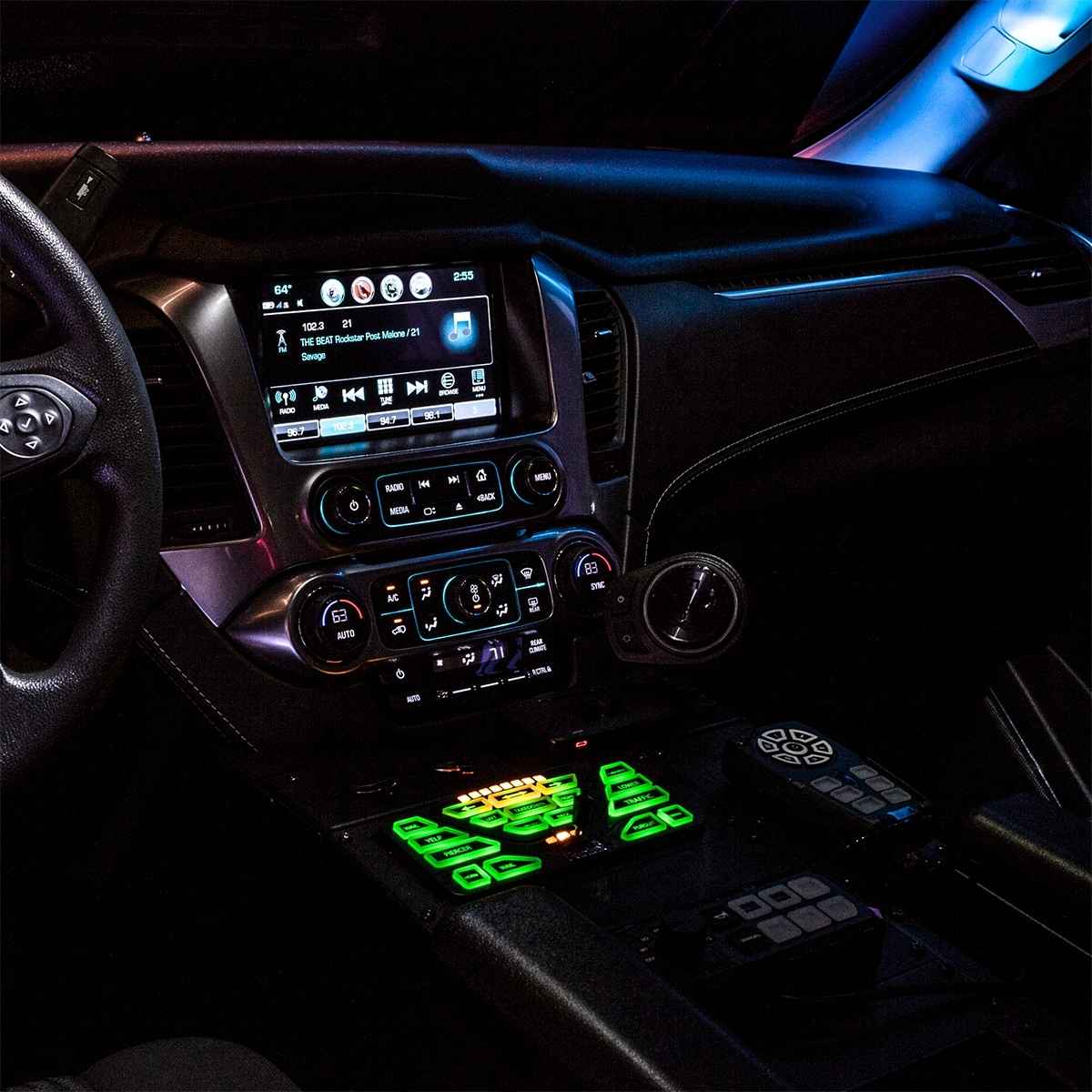

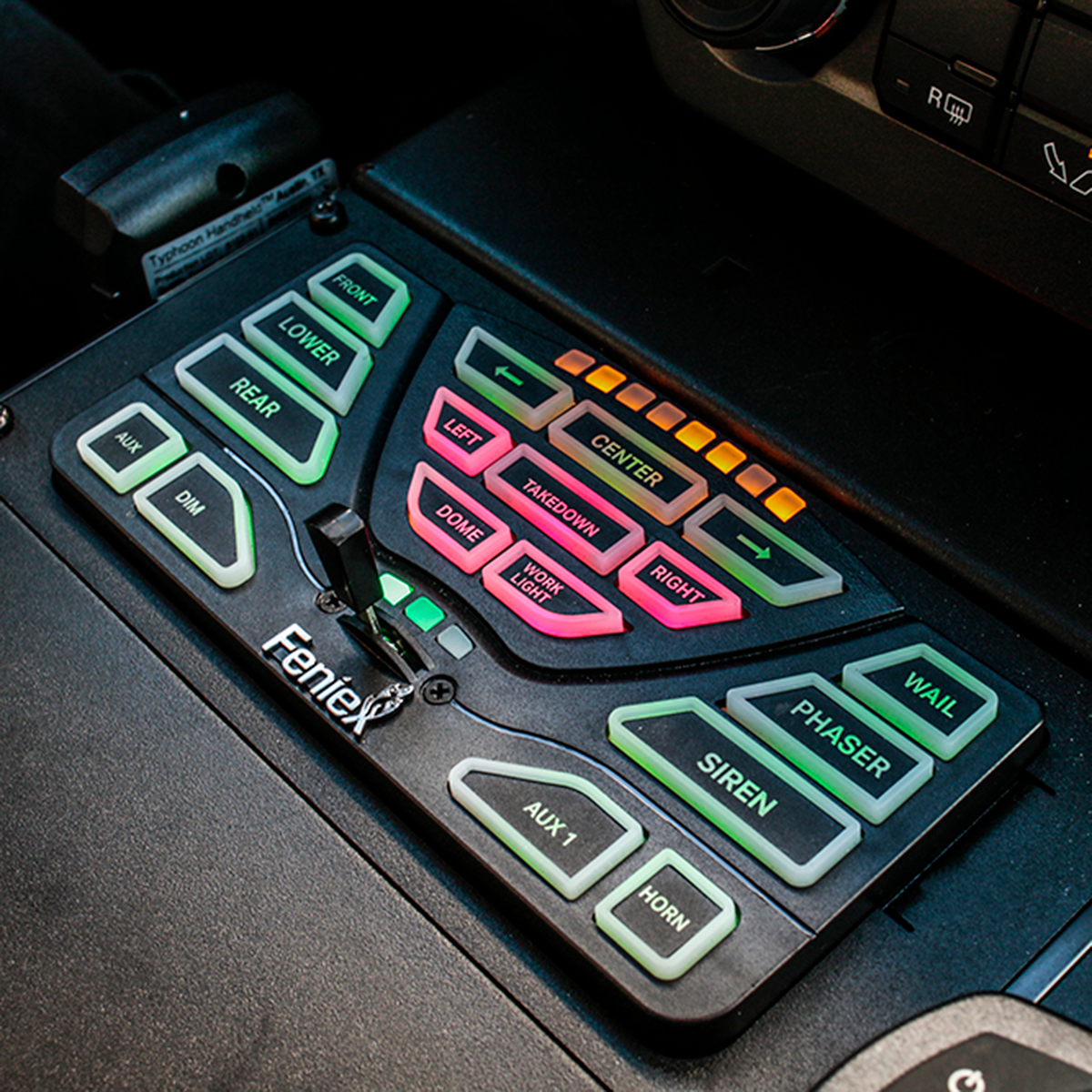

The Feniex 4200 DataLink Controller is a versatile and powerful system designed for emergency vehicles, offering comprehensive control over lighting and siren functionalities. Here's an overview of its features and specifications:
🔧 Specifications
-
Input Voltage: 12 VDC
-
Maximum Current Output: 60A
-

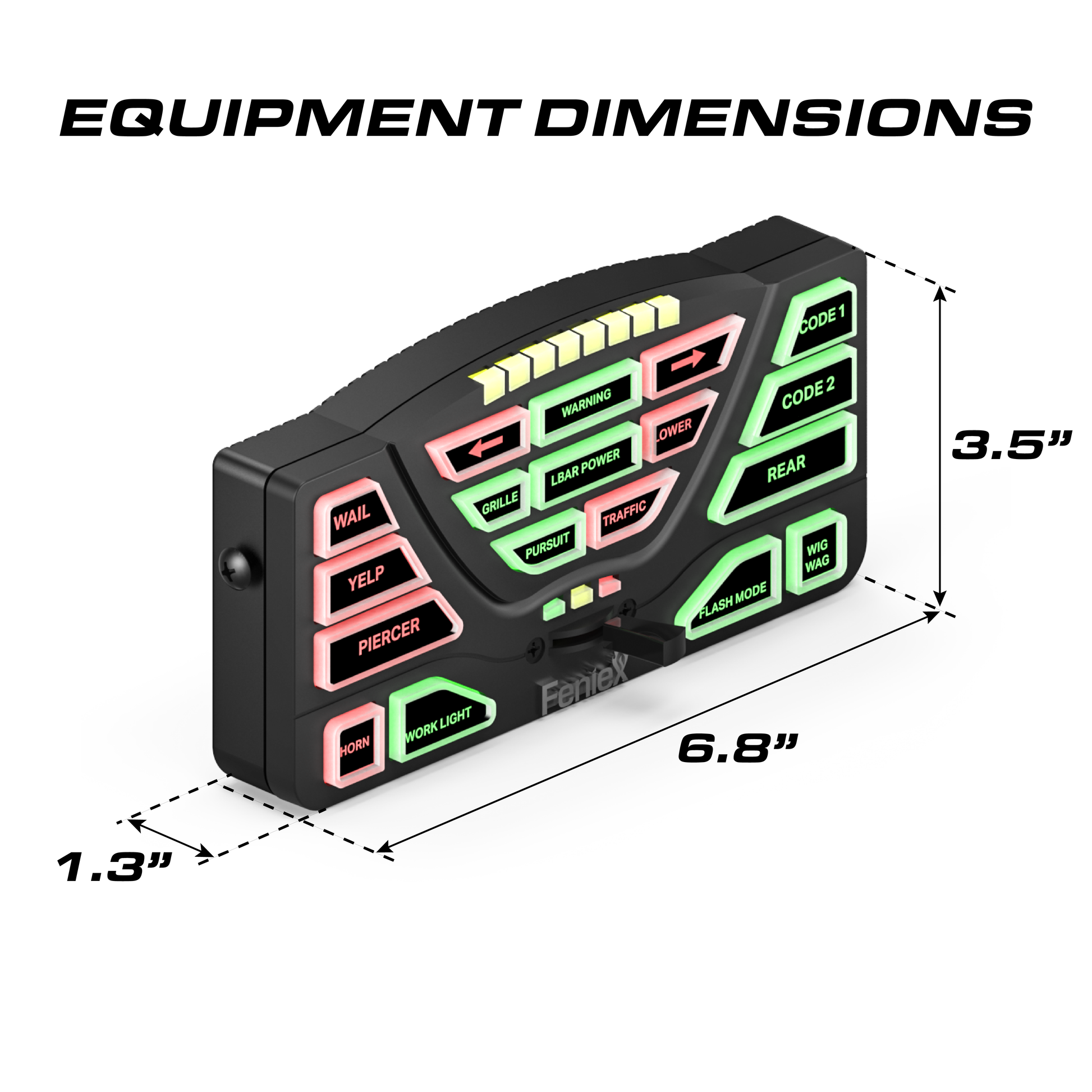

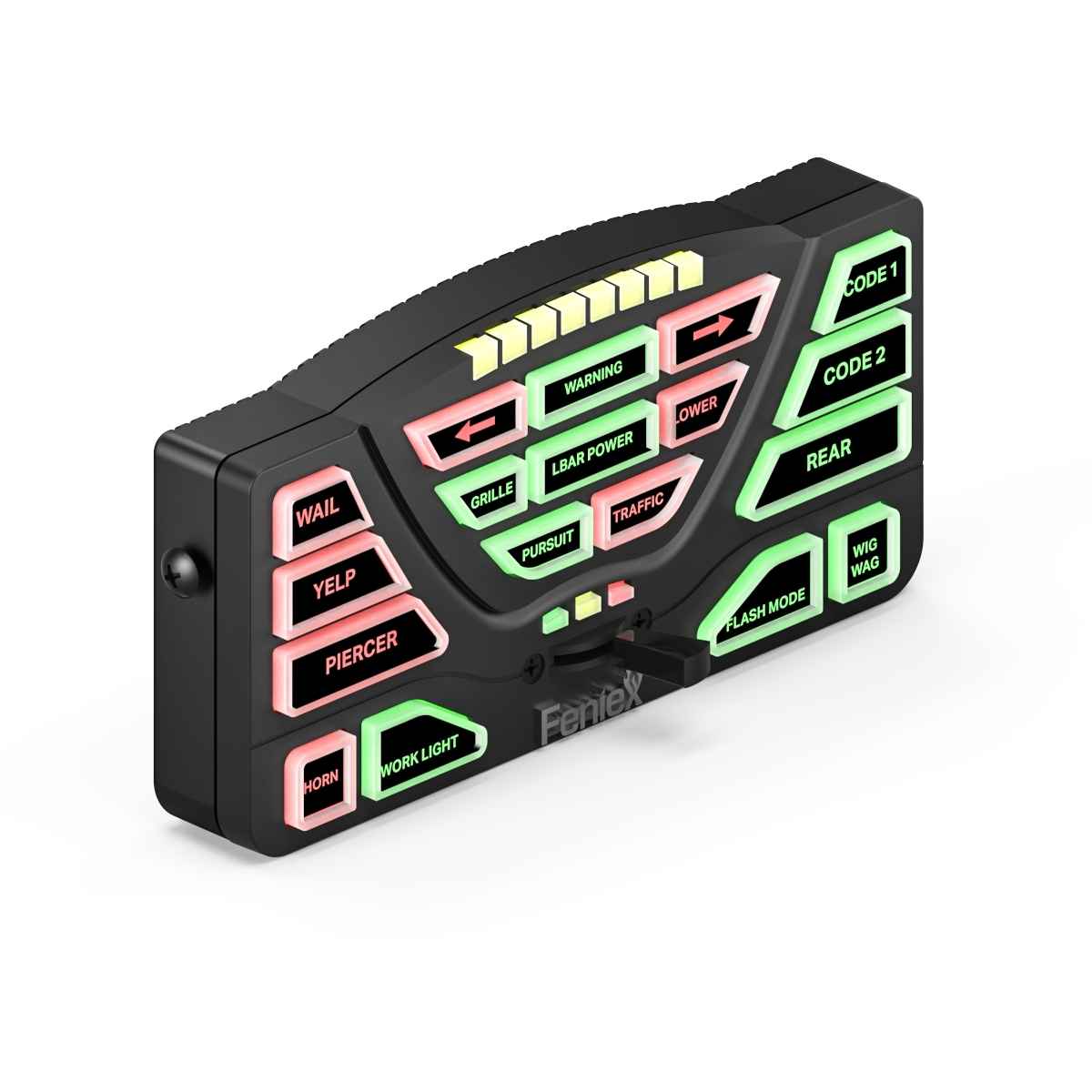

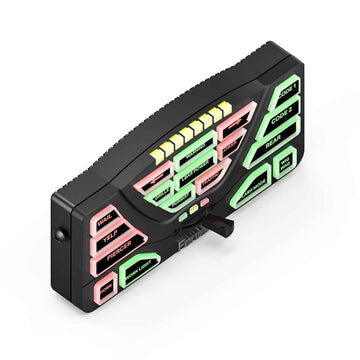

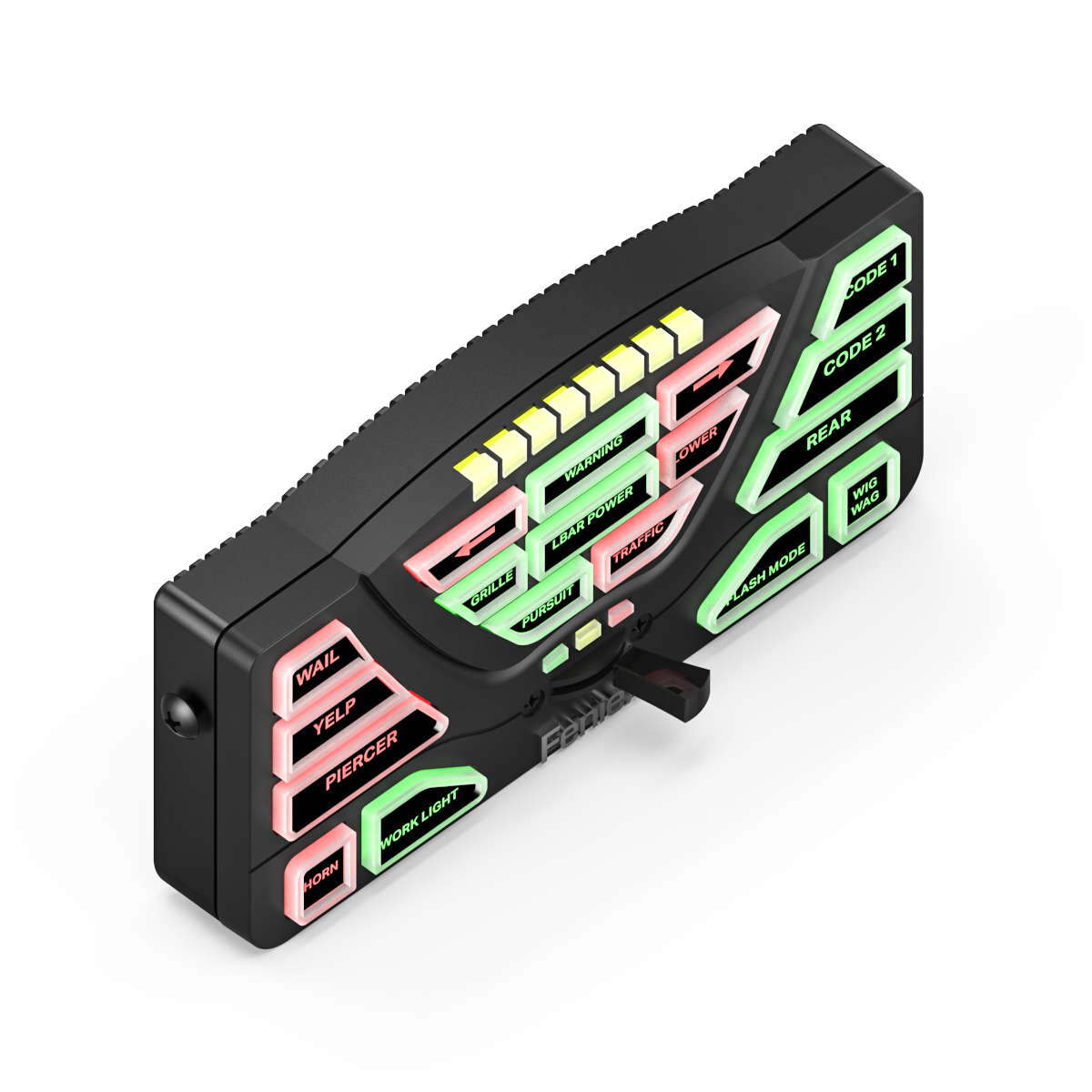

Controller Dimensions: 6.8" x 3.5" x 1.3"
-

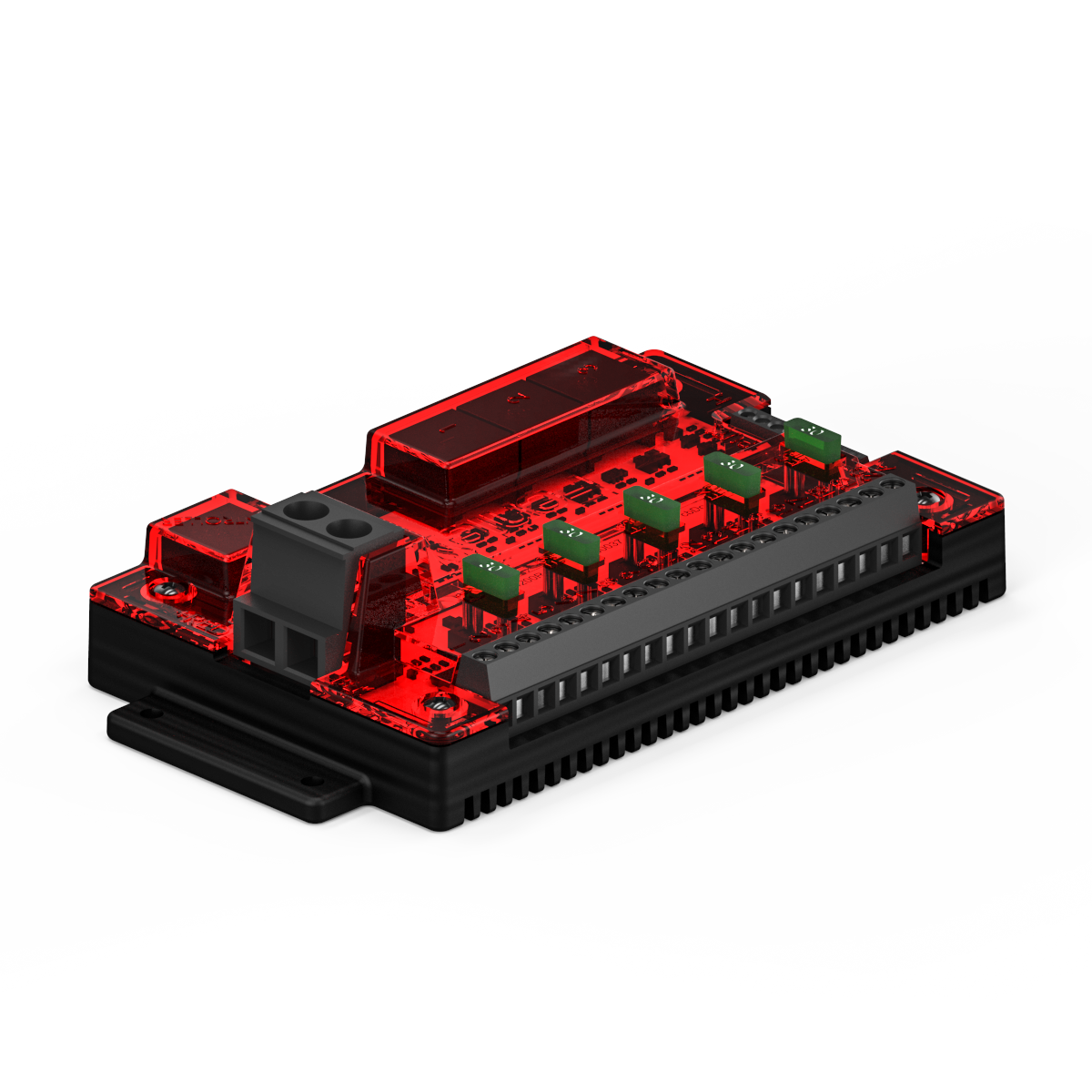

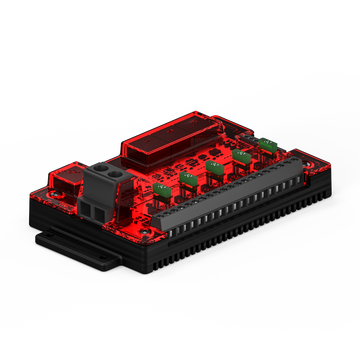

Relay Dimensions: 6.3" x 3.3" x 1.5"
-
Cable Length: 15 ft
💡 Key Features
-
Eighteen Programmable 10A Outputs: Allows for extensive customization of lighting and siren controls.
-
Two Programmable 12V Inputs: Facilitates integration with other vehicle systems.
-

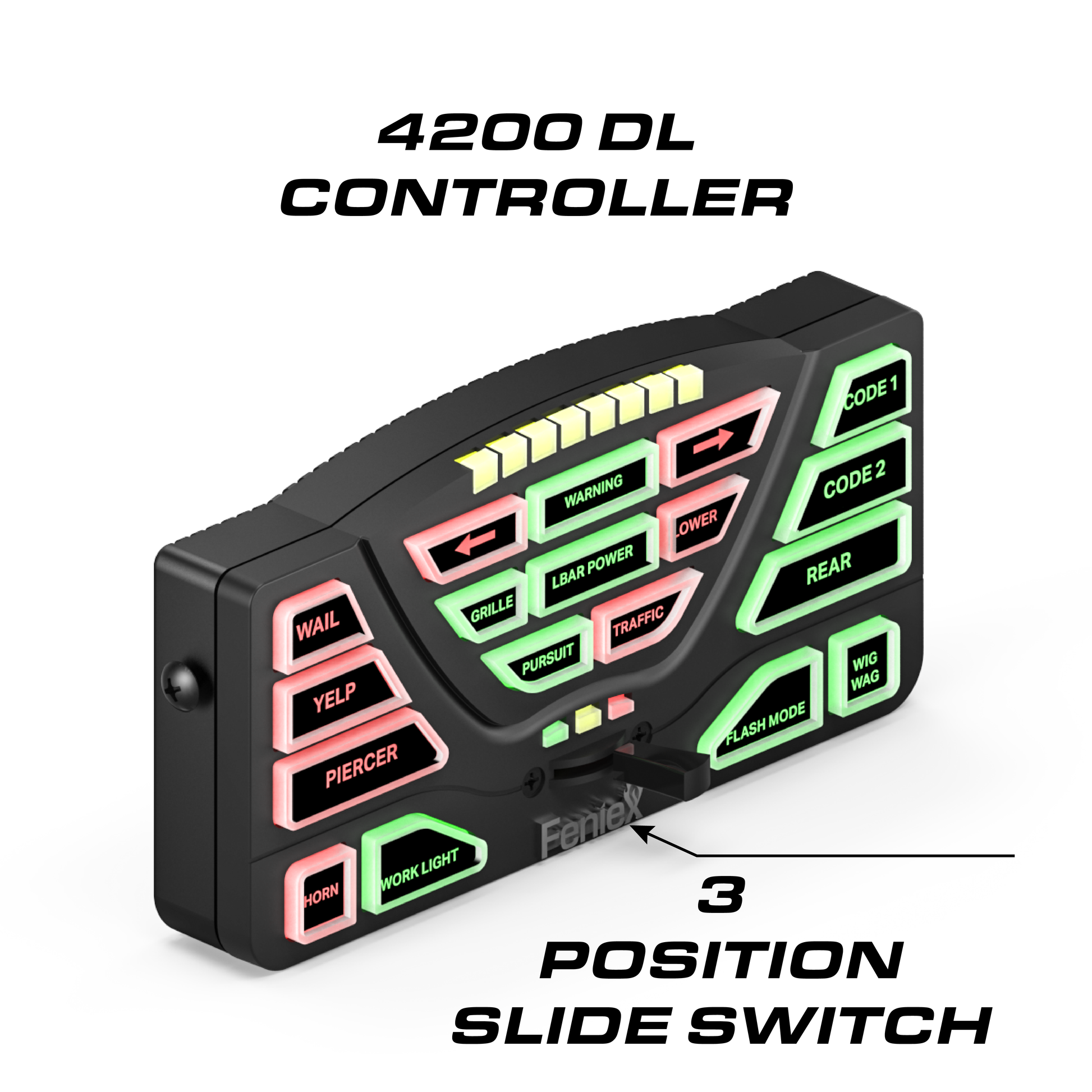

Three-Position Slide Switch: Enables quick selection between multiple preset configurations.
-
Two-Channel Integrated Wigwag: Provides synchronized flashing for headlights or taillights.
-
Programmable Day/Night Modes with Ignition Activation: Adjusts settings based on ambient light conditions and vehicle status.
-
Output Modes: Supports on/off, momentary, and timer-based operations.
-
Short Circuit and Overheating Protection: Ensures durability and safety during operation.
-

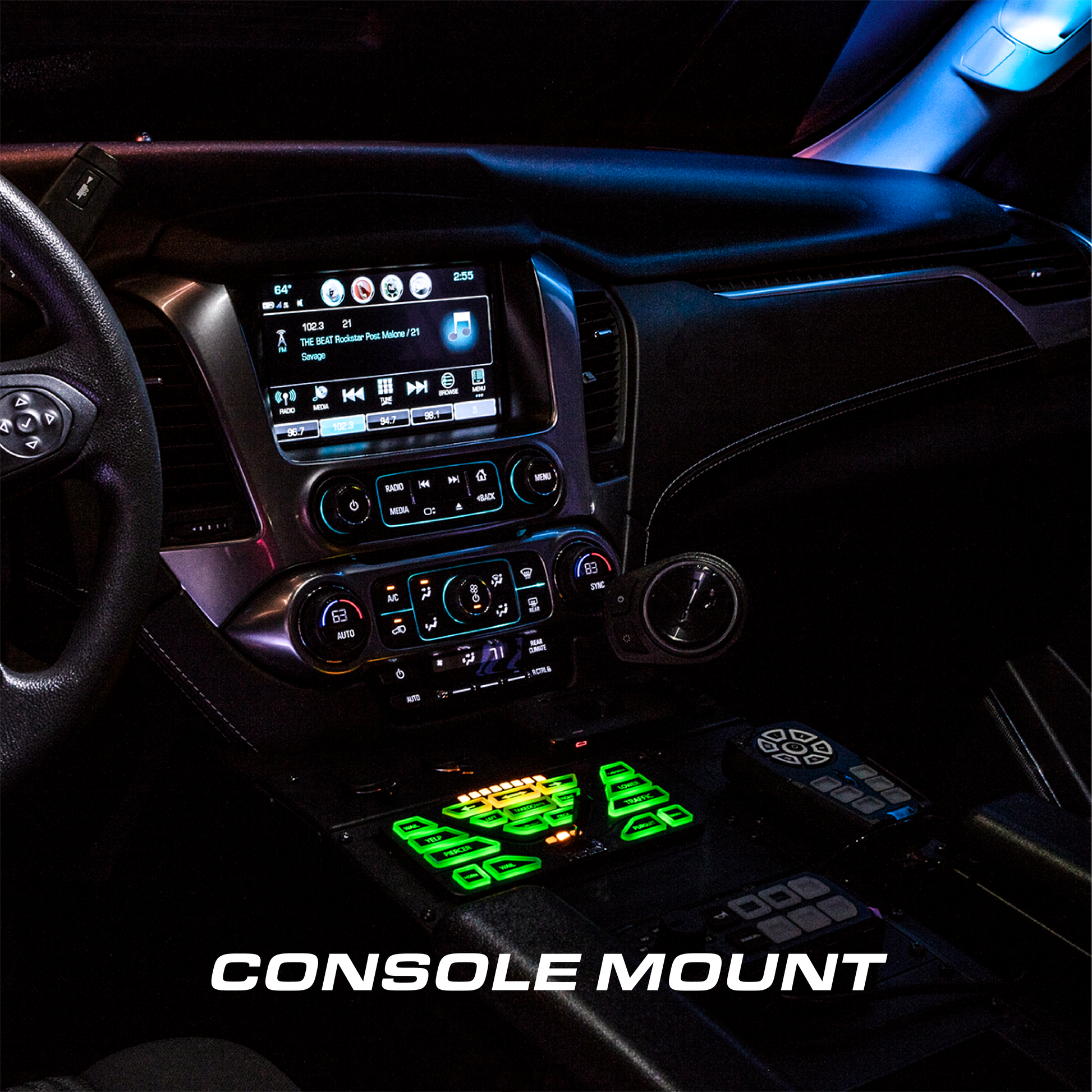

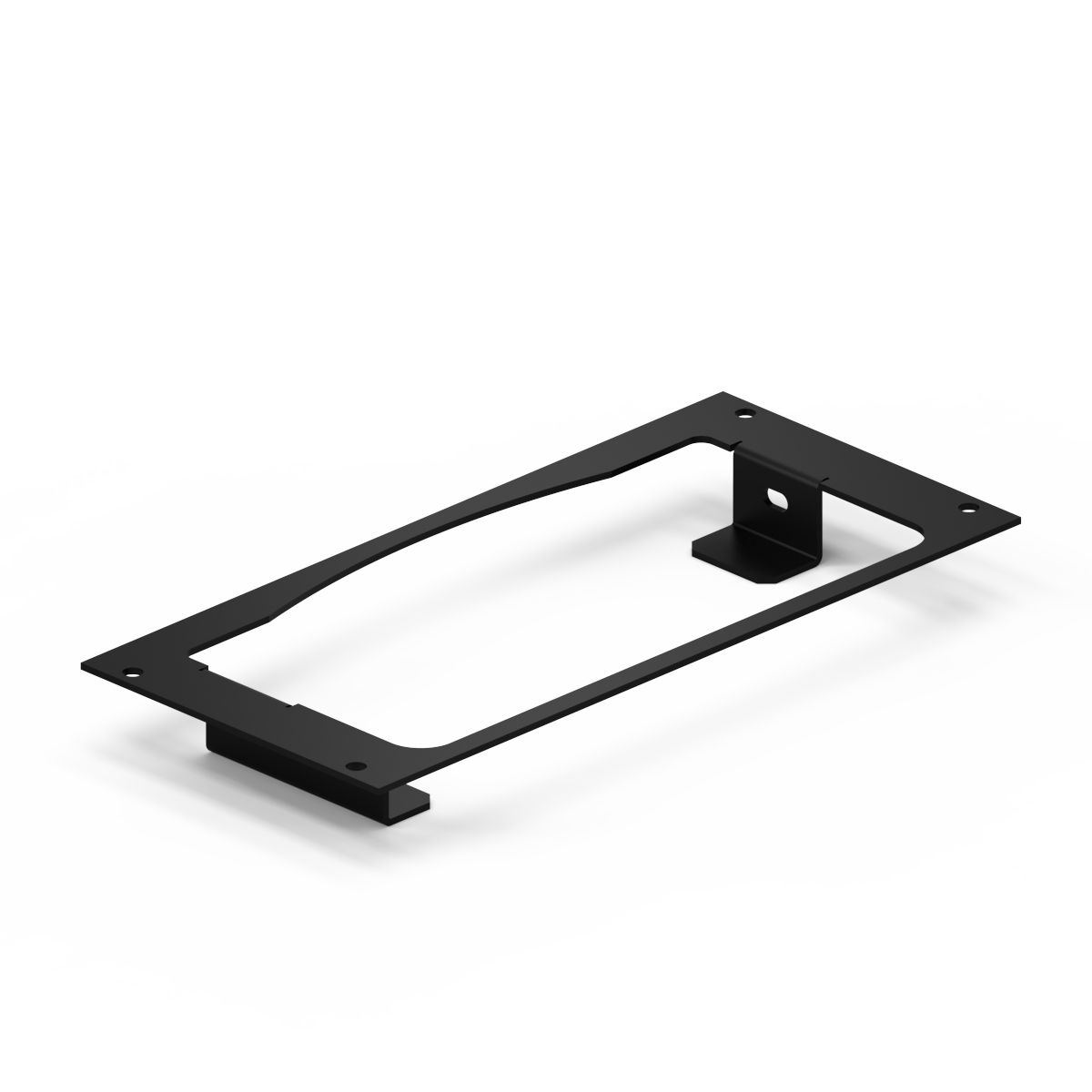

Optional Faceplates: Compatible with Havis, Jotto, Troy, or Team Tech consoles.
-
Made in the USA: Manufactured to high-quality standards.
📦 Included in the Box
