NightRide PRO-SL S04 640 (Ring)

The NightRide PRO-SL S04 640 (Ring) is a high-resolution thermal imaging solution designed for professional vehicle integration and mission-critical applications. Featuring a 640 × 512 thermal sensor and a wide 48° horizontal field of view, it delivers detailed thermal imaging and broad coverage to help professionals detect heat signatures in challenging environments.

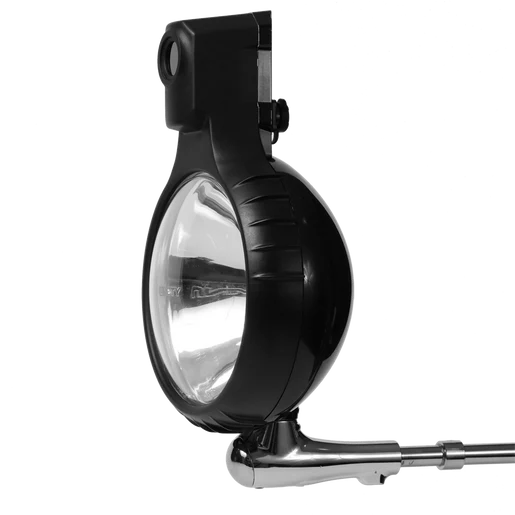

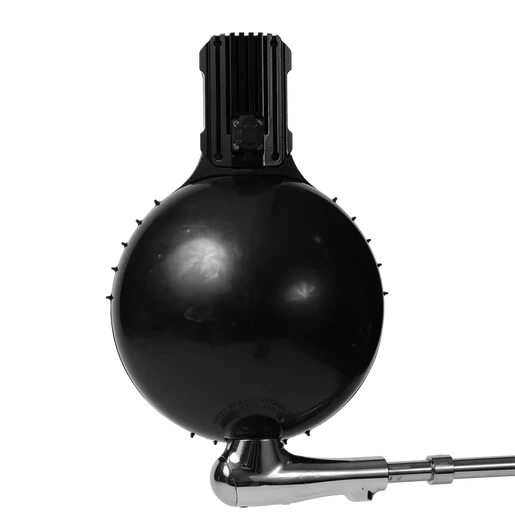

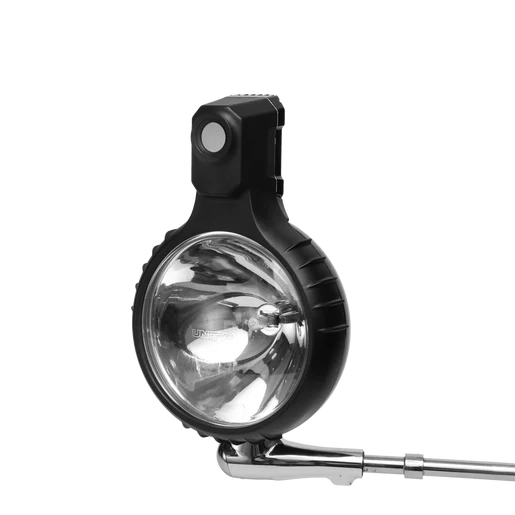

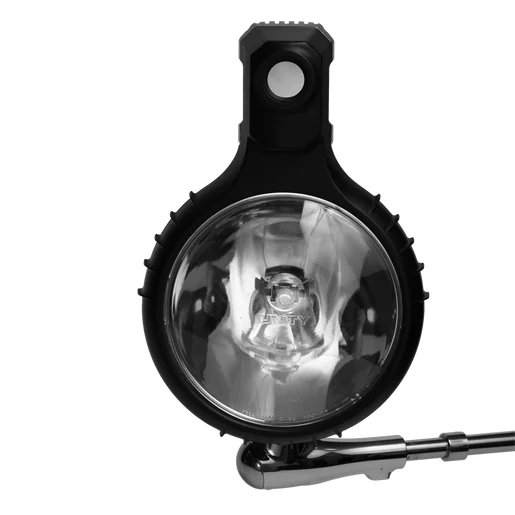

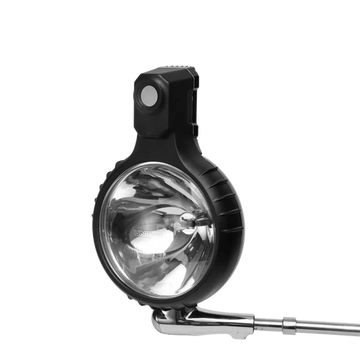

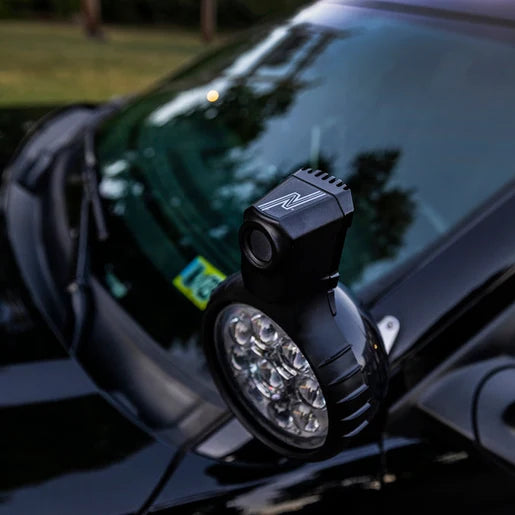

Designed for quick and secure installation, the system uses the Unity S04 Spotlight Mount with a replacement ring, making it suitable for both new vehicle builds and retrofit applications. Its mechanical pan/tilt functionality expands the viewing area and provides greater situational awareness when monitoring roads, surrounding areas, or potential hazards.

The PRO-SL S04 640 is built for reliable operation in demanding environments. Its IP67-rated sealed design protects the system from harsh outdoor conditions, while the operating temperature range of -40°F to +140°F allows it to perform in extreme temperatures. With a low 3W power consumption, it provides efficient thermal imaging for extended professional use.

Whether used for law enforcement, search and rescue, firefighting, emergency management, or other professional applications, the NightRide PRO-SL S04 640 provides the thermal visibility needed to identify heat signatures through darkness, dust, smoke, rain, snow, and fog.

Main Features

• High-resolution 640 × 512 thermal imaging

• Wide 48° horizontal field of view

• Unity S04 Spotlight Mount with quick-install replacement ring

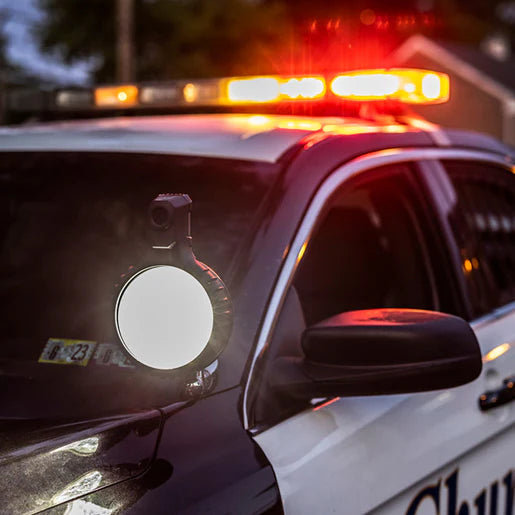

• Designed for vehicle retrofits and new builds

• Mechanical pan/tilt functionality for expanded coverage

• Continuous or event-based recording capabilities

• Rugged IP67-rated sealed design

• Low 3W power consumption

• Designed for professional and mission-critical applications

Specifications

• Sensor: 640 × 512 Thermal Sensor

• Field of View: 48° Horizontal

• Frame Rate: 30Hz

• Detection Range: Up to 660 yards

• Recognition Range: Up to 180 yards

• Identification Range: Up to 90 yards

• Power Consumption: 3W

• Operating Temperature: -40°F to +140°F

• Sealed Design: IP67

• Dimensions: 9.5" × 6.5" × 3"

• Weight: 9 ounces

Accessories

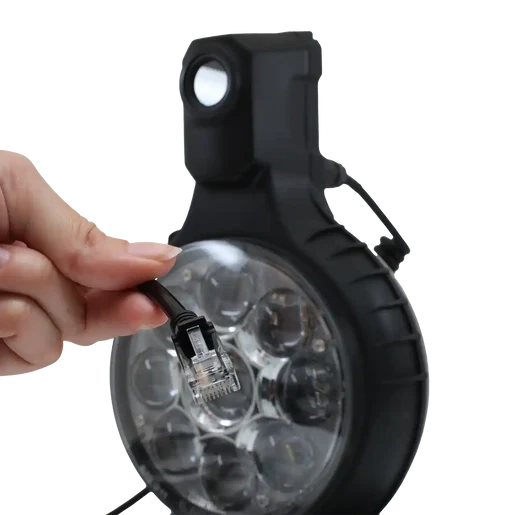

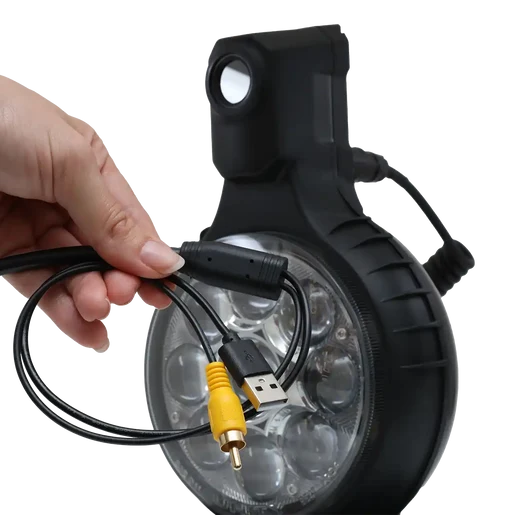

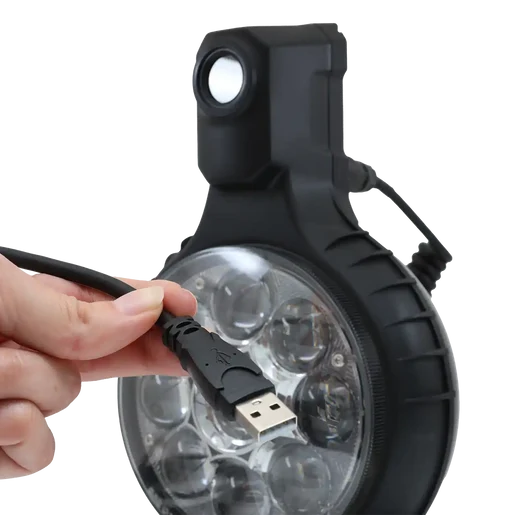

• Power Cable

• Connection Adapter

• Protective Dust Cap

• Heat Shrink Tubing

• User Manual

Ideal Applications

• Law enforcement

• Search and rescue

• Firefighting

• Emergency management

• Security and surveillance

• Professional vehicle integration

• Mission-critical operations

• Low-visibility environments

Full Situational Awareness

The NightRide PRO-SL provides a distinct and discreet advantage by detecting heat signatures at extended distances in virtually any condition. Whether operating through dust, smoke, rain, snow, fog, or darkness, the PRO-SL helps professionals gain critical seconds to see, prepare, and respond.
