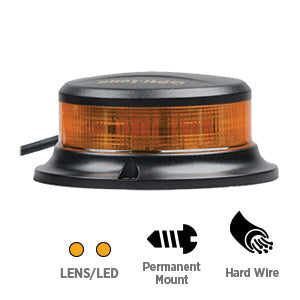

Opti-luxx 2500 Series Bristol 1.9" Round Amber/Amber Low Profile Beacon (3-Screw Mount, 3-Wire Connection)

The Opti-luxx 2500 Series Bristol 1.9" Amber/Amber Low Profile Beacon provides clear and consistent warning signals with Class 1 certification. Its 48 amber LEDs, 11 flash patterns, and durable construction make it suitable for permanent installations on emergency vehicles and equipment.

Features:

• Low-profile 1.9" beacon with amber lens and LEDs for high visibility
• 48 LEDs with 11 flash patterns for adaptable signaling
• SAE Class 1 certified for essential safety compliance
• 3-screw mount and 3-wire connection for secure installation

Specifications:

• Height: 1.9"
• Input Voltage: 10–30 VDC
• Current Draw: 1.5mA (min) / 2.75mA (max)
• LED Count: 48 LEDs
• Mounting: 3-screw mount
• Connection: 3-wire connection
• Certifications: SAE J845/J2139 Class 1, FMVSS/CMVSS 108
• Warranty: 3 years

How to Install:

1. Attach securely using the 3-screw mount.
2. Connect to power via the 3-wire cable.
3. Adjust flash pattern as required for maximum visibility.
