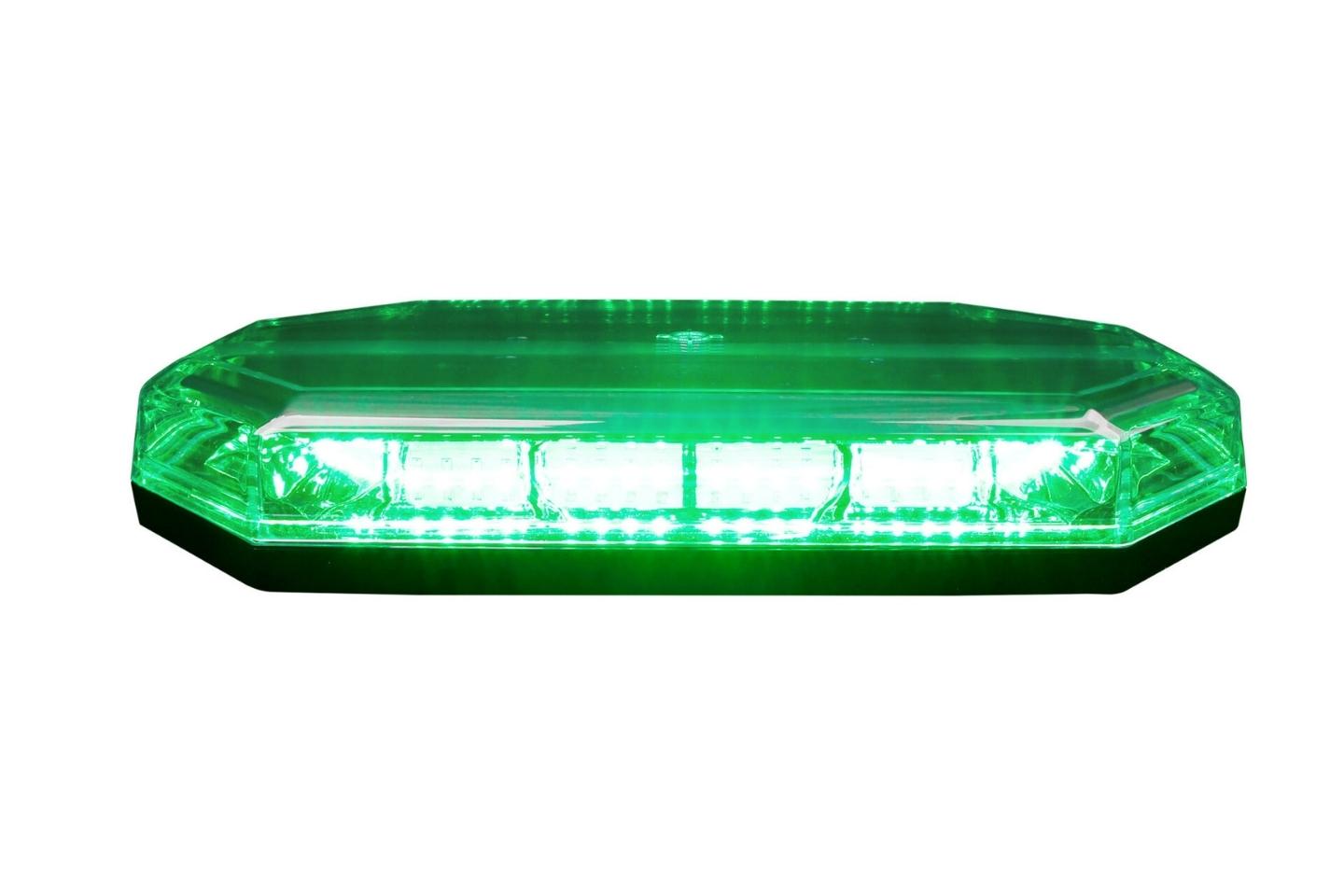

Opti-luxx LB1500 Series Phoenix 15" Clear/Green Light Bar (CL-1) (4-Stud Mount, 3-Wire Connection)

The Opti-luxx LB1500 Phoenix 15" Emergency Light Bar is the ideal compact, Class 1 LED solution for emergency and service vehicles. Sold by Forge Safety, it features a rugged polycarbonate lens with UV inhibitors and delivers 360-degree illumination for superior visibility.

Features:

• 6 Light bars in the series

• Low-profile, linear design for easy installation

• UV-resistant polycarbonate lens for durability

• SAE Class 1 certified for top-tier performance

Specifications:

• Input Voltage Range: 10-30 VDC

• Current Draw: 2.1A (min) / 3.5A (max)

• Operating Temperature: -40ºC to +65ºC

• LED Count: 56

• Mounting: 4-Stud (screw) mount

• Dimensions: Length 15.26", Width 8.65"

• Certifications: SAE J845/2139 CLASS 1 FMVSS/CMVSS 108

Flash Patterns:

1. Rapid Front/Back

2. Single Flash

3. Front/Back

4. Quad

5. Rotating

6. Rotating + Compass + Triple

7. Alternating

8. Double Flash

9. Quint

10. Rapid Alternating

How to Install:

• Secure the light bar using the 4-stud mount provided.

• Connect the 3-wire system to the vehicle’s power source (10-30 VDC).

• Test flash patterns for proper functionality.

Warranty:

• 3-year warranty for reliable performance.
