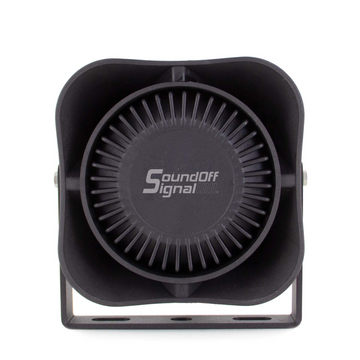

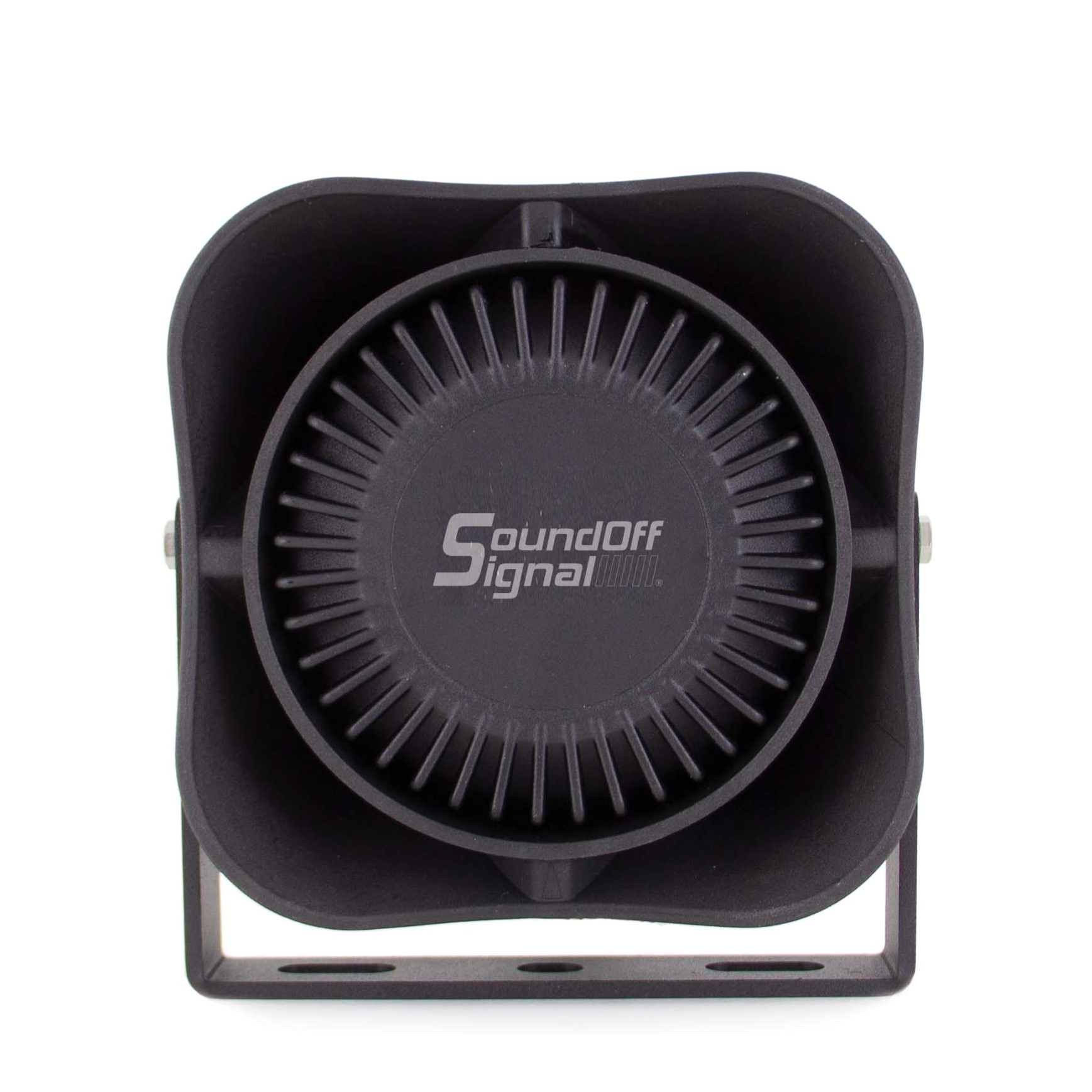

Sound Off 100U Series Composite Speaker with Universal Bail Bracket – 100 Watt

SoundOff 100U Series Composite Speaker with Universal Bail Bracket – 100 Watt

Description:

The SoundOff 100U Series Composite Speaker delivers clear, powerful 100-watt output in a compact, durable assembly. Its composite housing creates electrical isolation from the vehicle chassis, extending product life. The weather-tested, reinforced nylon material resists corrosion, ensuring longevity in various environmental conditions. This speaker is ideal for emergency, utility, and commercial vehicles requiring reliable audio signaling.

Features:

• Composite Housing: Provides electrical isolation from the vehicle chassis to extend product life.

• Weather-Tested Material: Reinforced nylon material resists corrosion.

• Passive Water and Moisture Egress: Designed to prevent water accumulation.

• Universal Bail Bracket Included: Allows for versatile mounting options.

• Compliance: Meets SAE J1849 and CA Title 13 Class A certification when used with a SoundOff Signal Siren.

Specifications:

• Wattage: 100 Watt

• Impedance: 11 Ω (ohms)

• Dimensions Without Bracket: 6.22” H x 6.22” W x 3.3” D (158mm H x 158mm W x 86mm D)

• Dimensions With Bracket: 7.1” H x 6.9” W x 3.3” D (181mm H x 174mm W x 89mm D)

• Mount Types: Bail mount

• Warranty: Five-year warranty

What’s Included?

• SoundOff 100U Series Speaker

• Universal Bail Bracket

• Installation Hardware

• Installation Instructions

How to Install:

1. Select Mounting Location: Choose a suitable location on your vehicle that allows for optimal sound projection and complies with vehicle safety standards.

2. Attach Universal Bail Bracket: Secure the universal bail bracket to the chosen location using the provided hardware.

3. Mount the Speaker: Attach the 100U Series Speaker to the bail bracket, ensuring it is firmly secured.

4. Connect Wiring: Follow the installation instructions to connect the speaker to your vehicle’s siren system or public address system.

5. Test Functionality: After installation, test the speaker to ensure proper operation and sound clarity.

Shipping:

Please allow 2 to 4 weeks for shipping, as each unit is manufactured by SoundOff Signal to meet high-quality standards.

Warranty:

SoundOff Signal offers a five-year warranty covering defects in materials or workmanship for this product. All warranty claims must be processed through us, as SoundOff Signal only accepts returns from the original purchaser.

If you encounter any issues and need to process a warranty claim, please contact us directly. We will coordinate with SoundOff Signal to facilitate the return process, ensuring your product is sent to their facility for assessment. SoundOff Signal will determine if repair or replacement is necessary.

• Warranty Claim Process: Please allow 30 to 60 days for processing, depending on shipping and inspection times.

• Shipping Costs: Customers are responsible for all shipping costs associated with warranty claims, and shipping fees are non-refundable.

Enhance Your Vehicle’s Audio Signaling with the SoundOff 100U Series Speaker – Reliable, Durable, and Efficient.
