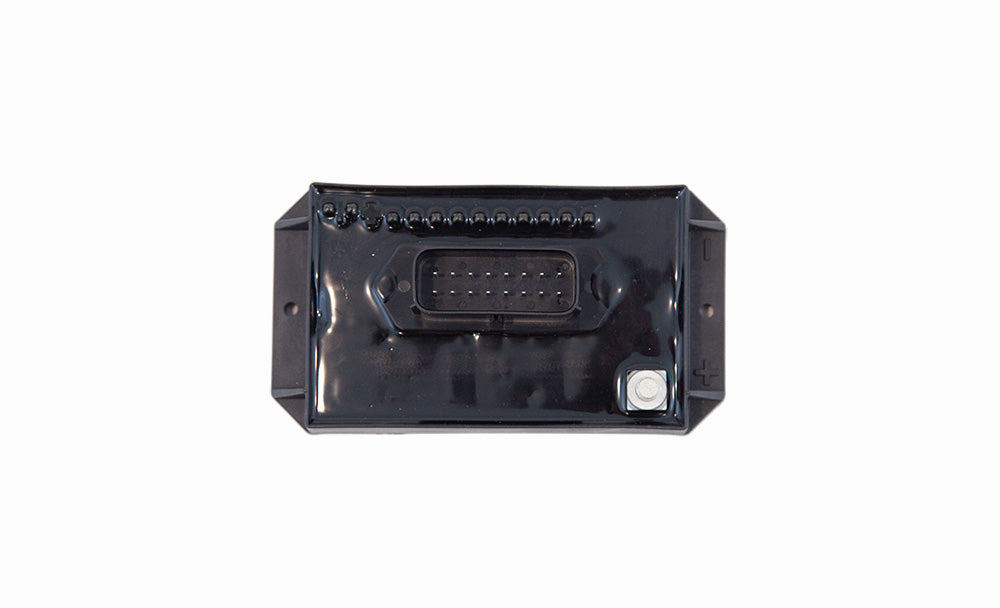

Sound Off Bracket

The SoundOff Bracket offers versatile upfitting options with six 5-amp and four 10-amp solid-state switchable outputs. It also provides four positive or negative activated inputs for seamless integration with the bluePRINT system. Ideal for retrofitting, this bracket works with bluePRINT 2, bluePRINT 3, and SoundOff Central systems, making it a perfect solution for emergency and fleet vehicle applications.

Features:

• Six 5-amp and four 10-amp solid-state switchable outputs
• Four positive or negative activated inputs for flexible configuration
• Optional ignition wake-up for enhanced functionality
• Works with bluePRINT 2, bluePRINT 3, and SoundOff Central
• Node ID is set using a magnet for easy installation and retrofitting

Specifications:

• Input Voltage: 9-16Vdc
• Solid State Switchable Outputs: (6) 5-amp, (4) 10-amp
• Inputs: (4) positive or negative activated inputs
• Compatibility: bluePRINT 2, bluePRINT 3, and SoundOff Central systems

Warranty:
1-year warranty

How to Install:

• Mount the bracket securely in a compatible location.
• Connect the outputs to the vehicle’s system.
• Set the Node ID using the magnet for simple installation.
