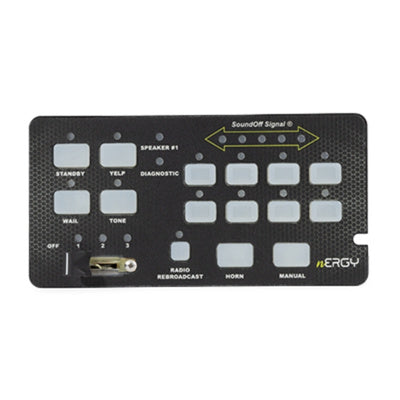

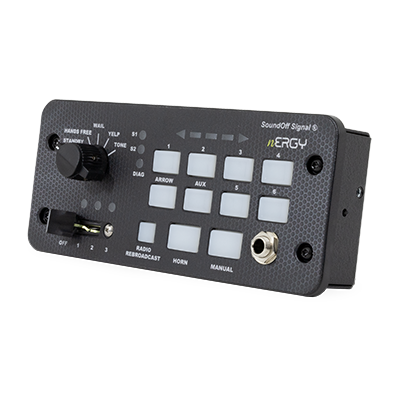

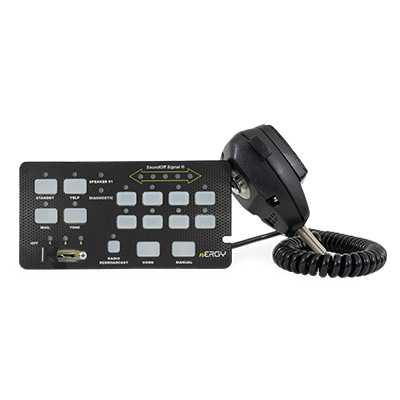

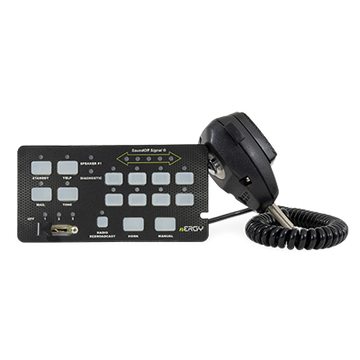

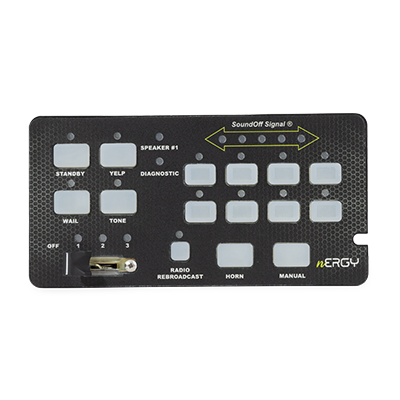

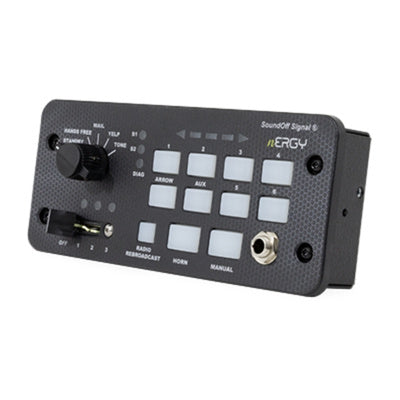

SoundOff Control Panel

SoundOff Control Panel

Description:
The SoundOff Control Panel is a versatile and user-friendly interface designed to manage various vehicle functions efficiently. Its intuitive layout and customizable features make it an ideal choice for emergency and utility vehicles requiring reliable control systems.

Features:

• Eight Programmable Buttons: Fully programmable buttons that can function in ON/OFF or momentary switch modes, allowing for tailored control of vehicle functions.
• Directional Arrow Function: Integrated directional arrow capabilities enhance signaling and communication during operations.
• Backlit Rubber Touch Buttons: Ensures visibility and ease of use in low-light conditions.
• 35 Selectable Icon Stickers: Provides clear labeling options for each button, facilitating quick identification and operation.
• Compact Design: Streamlined form factor allows for versatile mounting options within the vehicle.

Specifications:

• Input Voltage: 10-24 VDC
• Input Current: Peak 32A, Average 21A, Minimum 0.01A
• Control Panel Cable: 8-pin RJ45 cable, 24 AWG, 4 meters
• Operating Temperature: -30°C to +65°C
• Dimensions:
  • Control Panel: 3.81" L x 2.7" H x 1" D
  • Power Module (for high current model): 4.4" L x 3.5" H x 1.05" D

What's Included:

• SoundOff Control Panel
• Power Module (for high current model)
• 35 Icon Stickers for button labeling
• Installation Instructions

Installation Instructions:

1. Mount the Control Panel: Secure the control panel in a location accessible to the operator, ensuring it does not obstruct other controls.
2. Connect Wiring: Use the provided RJ45 cable to connect the control panel to the power module (if applicable) and integrate it with the vehicle's electrical system.
3. Program Buttons: Assign functions to each button according to operational requirements, utilizing the ON/OFF or momentary switch modes.
4. Apply Icon Stickers: Label each button with the appropriate icon sticker to denote its function clearly.
5. Test Functionality: Verify that all programmed functions operate correctly and that the directional arrow feature responds as intended.

Shipping:
Please allow 2 to 4 weeks for shipping, as each unit is manufactured to meet high-quality standards.

Warranty:
This product comes with a manufacturer's warranty covering defects in materials or workmanship. For warranty claims, please contact us directly to facilitate the return process. Customers are responsible for all shipping costs associated with warranty claims, and shipping fees are non-refundable.

Enhance Your Vehicle's Control System with the SoundOff Control Panel – Versatile, Durable, and User-Friendly.
