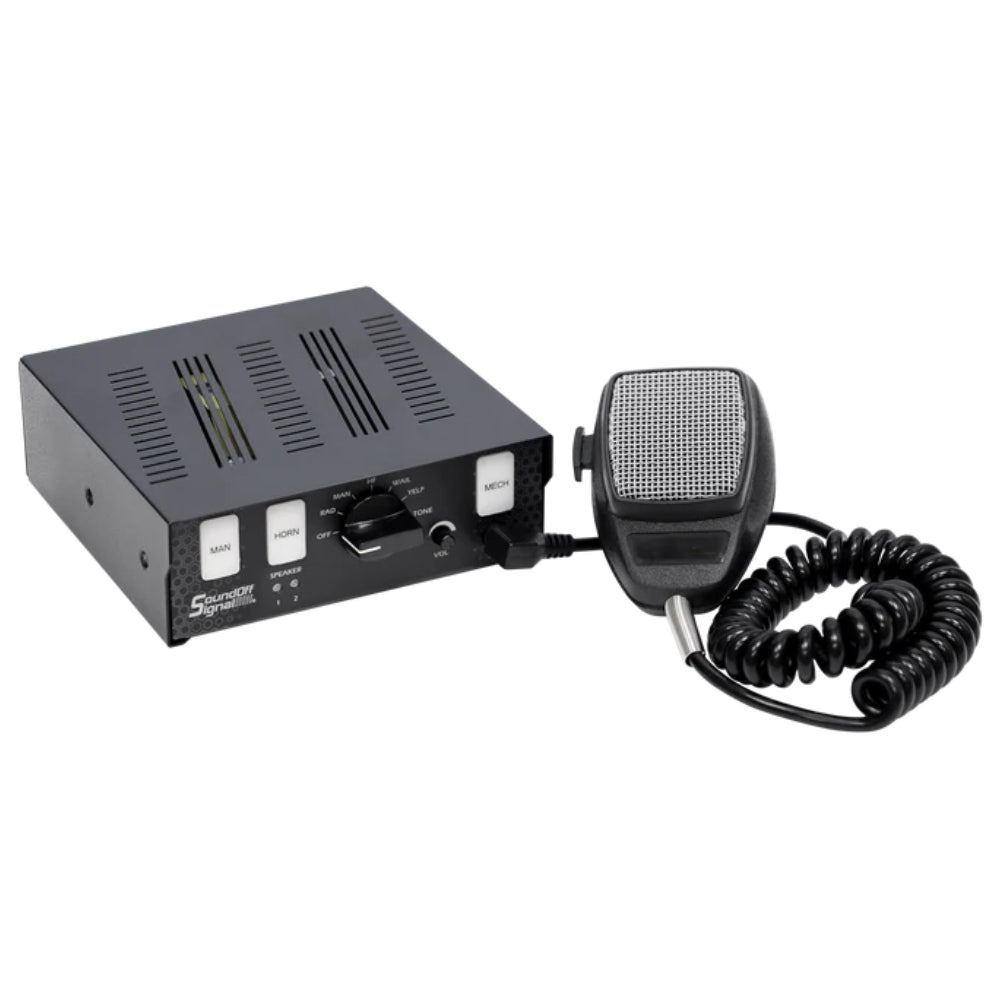

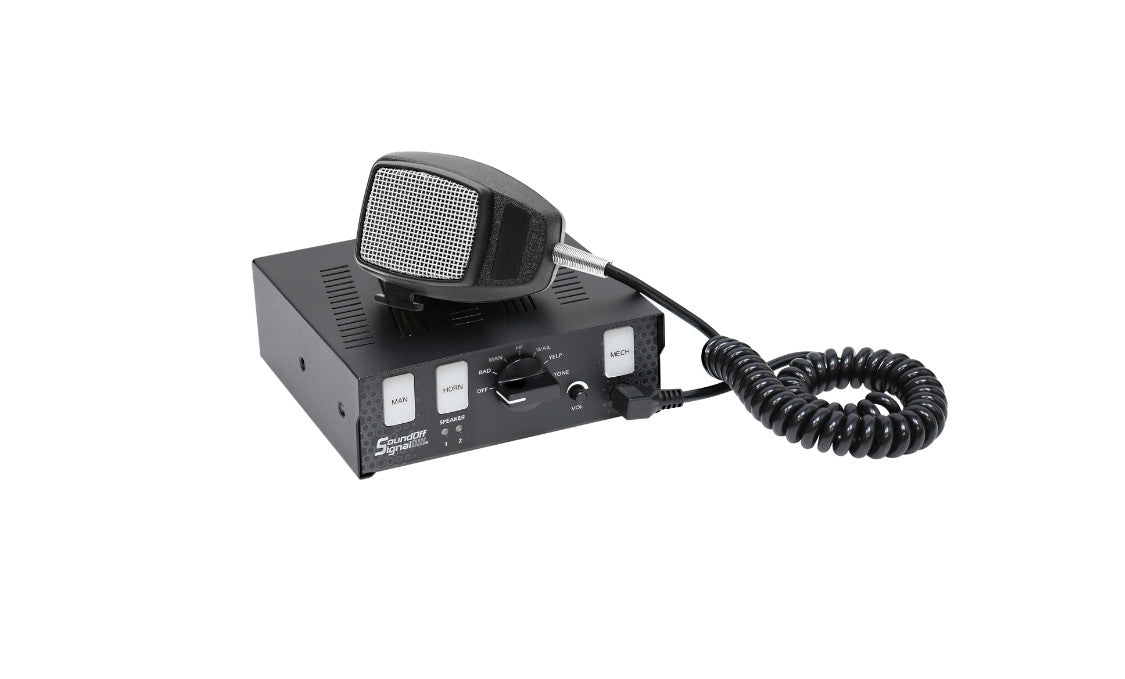

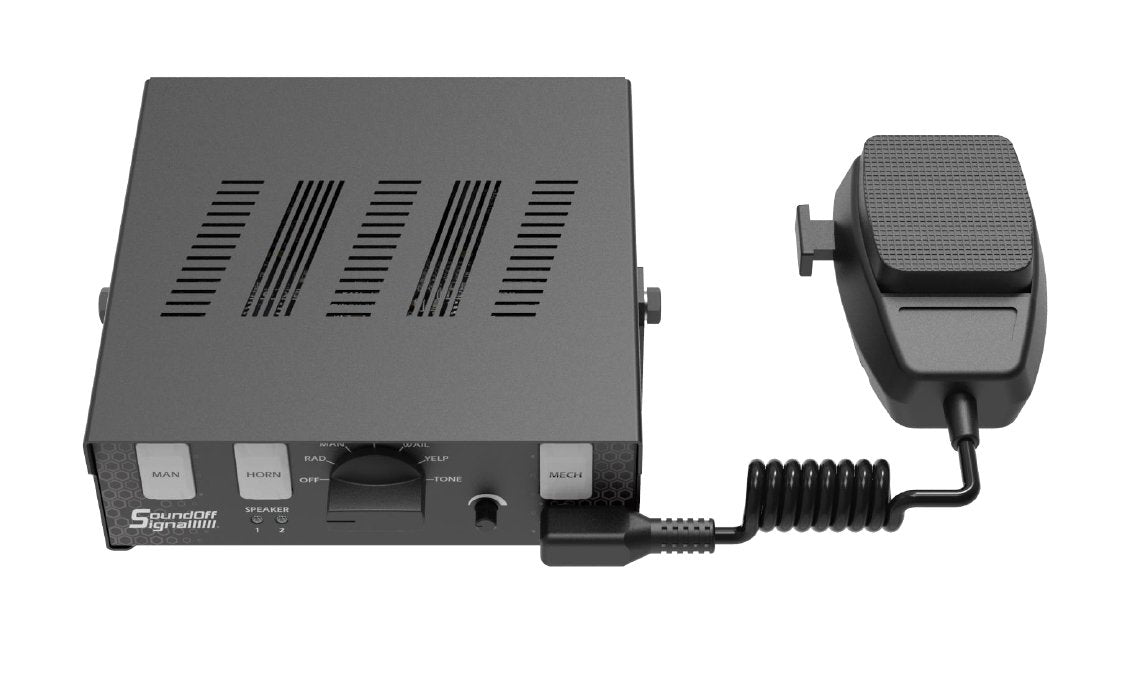

SoundOff FR100 Series Siren

The SoundOff FR100 Series Siren is a versatile, compact, and cost-effective solution designed for emergency vehicles requiring powerful audio output and ease of use. With a 200-watt single-tone output, this siren is compatible with one or two 100-watt speakers, delivering superior performance for public address and emergency sirens. Certified to SAE J1849, CA Title 13, and ECE R10 standards, it ensures reliable compliance with safety regulations.

Equipped with up to 24 selectable tones, including a dedicated mechanical tone, the FR100 Series Siren provides clear and distinct audio for every situation. The large buttons and rotary knob are designed for easy operation, even with gloves, making it ideal for police cars with sirens, utility vehicles, and emergency response teams. Its hands-free operating mode further enhances functionality, ensuring seamless operation during critical moments.

Key Features:

• Full-Function Siren: Compatible with one or two 100-watt speakers for flexible installation.
• 24 Selectable Tones: Includes a mechanical tone, manual override, Yelp, Wail, and more.

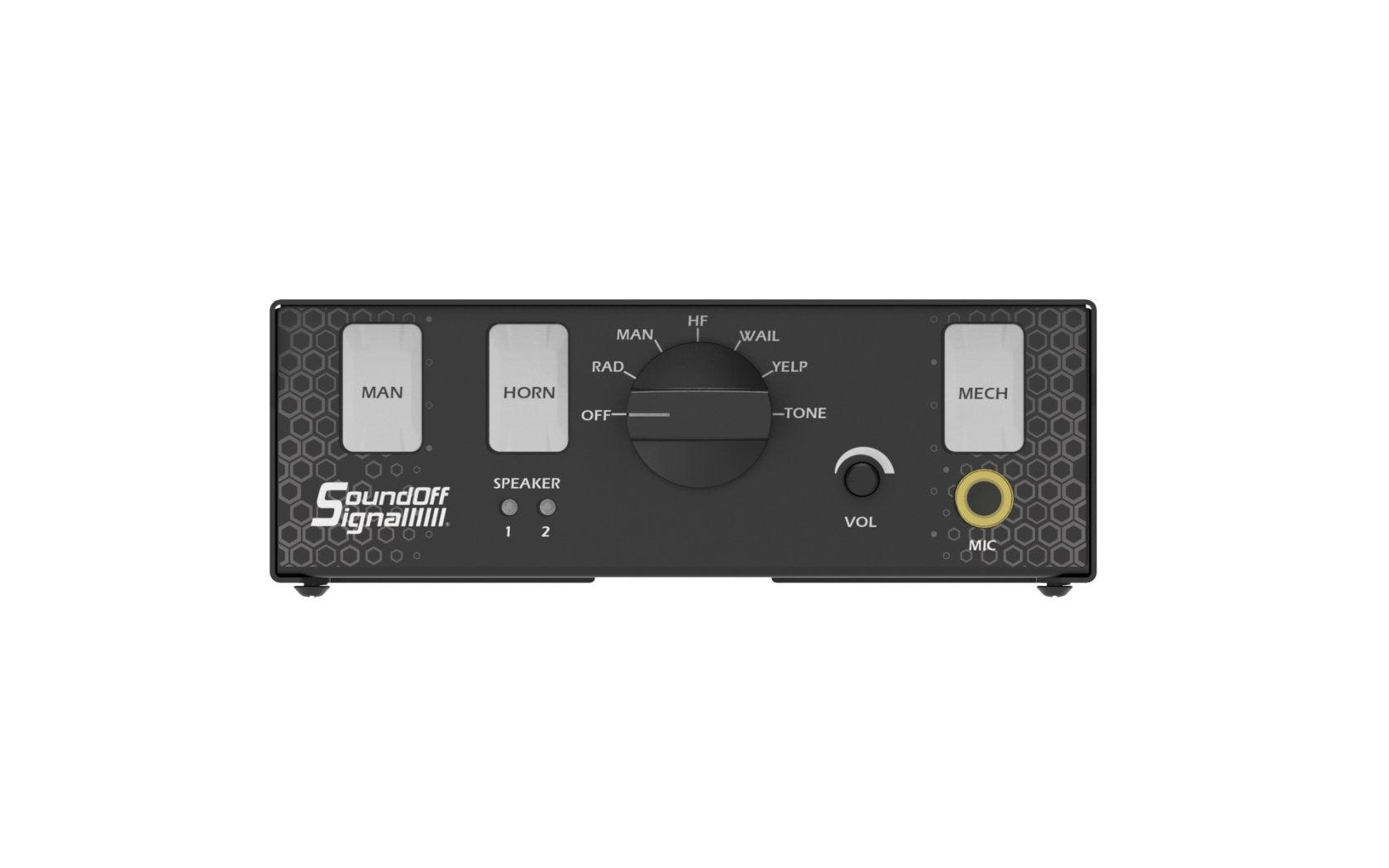

• Glove-Friendly Design: Large buttons and a rotary knob ensure ease of use in any condition.
• Hands-Free Mode: Allows seamless operation for emergency vehicle sirens.
• Horn Ring Transfer Input: Enables quick tone changes via the vehicle's horn.

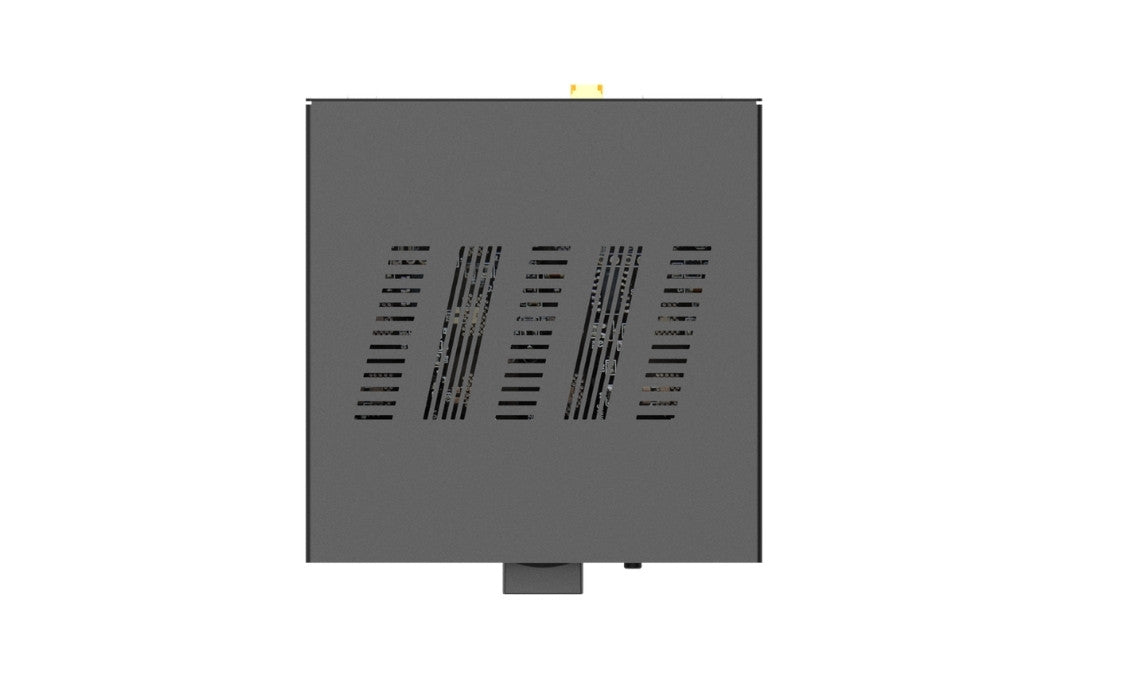

• Durable Build: Metal enclosure with a flat black painted finish for rugged reliability.
• Wide Compatibility: Meets SAE J1849, CA Title 13, and ECE R10 standards.

Specifications:

• Input Voltage: 10-30 VDC
• Power Output: 200 watts
• Input Current:
  • 9.5 Amps @ 13.4 VDC (with one 100W speaker)
  • 19 Amps @ 13.4 VDC (with two 100W speakers)
• Siren Frequency Range: 500Hz – 2000Hz
• PA Audio Frequency Range: 300Hz – 10,000Hz
• Dimensions: 6" L x 2.14" H x 6.14" D
• Operating Temperature: -40°C to +50°C
• Mounting: U-Bracket for secure installation
• Warranty: Five-year warranty for long-lasting performance

What’s Included:

• SoundOff FR100 Series Siren
• U-Bracket for mounting
• Installation hardware
• Instruction manual

How to Install:

1. Mount the Siren: Use the included U-Bracket to secure the siren in an accessible location.
2. Connect Wiring: Follow the instructions to connect the siren to one or two 100-watt speakers and the vehicle's power system.
3. Configure Tones: Use the rotary knob to select and configure tones as per your requirements.
4. Test the System: Ensure all functions, including hands-free mode, PA, and tone selection, are working properly.
