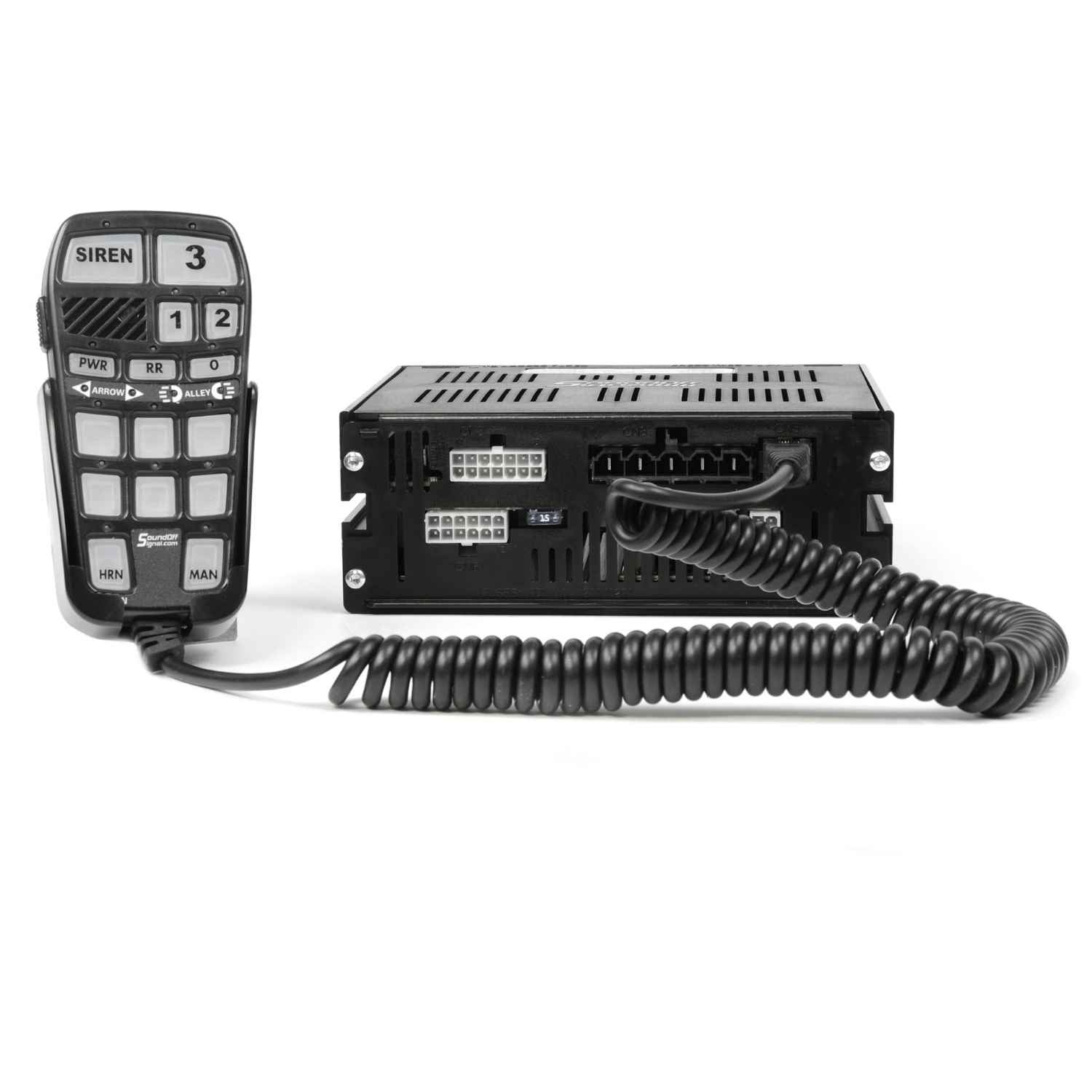

SoundOff nERGY 400 Series Handheld Siren - 1 speaker

The SoundOff nERGY 400 Series Handheld Siren - 1 Speaker is a versatile and portable siren system designed for emergency vehicles. Featuring a 100-watt single-tone output, this handheld siren is built for efficiency, durability, and ease of use.

Key Features:

• Single-Tone Output: Loud and focused 100-watt sound for clear communication.
• Handheld Design: Compact and portable for flexible operation.
• Button Control: Large, well-spaced buttons for easy use, even with gloves.
• Relay Control: Operates up to 12 relay outputs (three 20-amp and nine 10-amp).
• Built-In Protections: Safeguards against over/under voltage, short circuit, and reverse polarity.
• Hands-Free Feature: Cycle or cancel tones using the horn button when connected to the horn-ring circuit.

Specifications:

• Certifications: SAE J1849, CA Title 13 (with SoundOff Signal Speakers).
• Input Voltage Range: 10-16 VDC.
• Power Output: 100 watts (single tone).
• Current Draw: 7 Amps @ 13.4 VDC (100W speaker).
• Audio Frequency: 500Hz – 3kHz.
• Siren Frequency: 675Hz – 1633Hz.
• Operating Temperature: -40°C to +50°C.
• Dimensions:

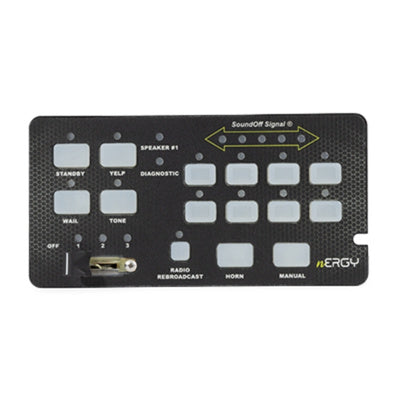

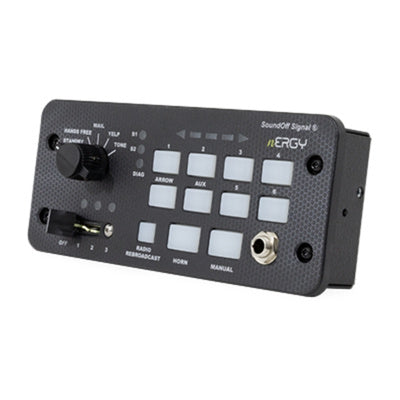

  • Control Panel: 2.50" L x 5.00" H x 0.98" D.
  • Amplifier: 6.62" L x 7” H x 6.51" D.

What’s Included:

• SoundOff nERGY 400 Series Handheld Siren (100-Watt).
• Wiring Harness and Installation Hardware.
• User Manual and Setup Instructions.
