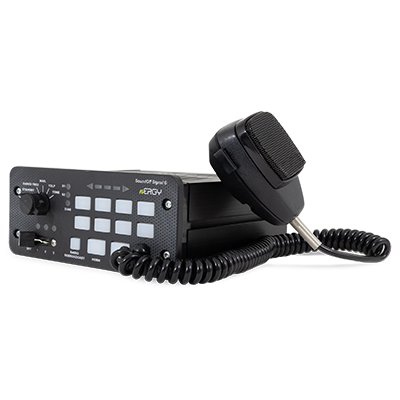

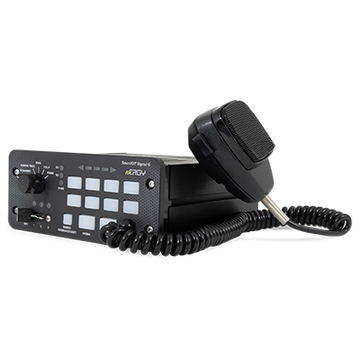

SoundOff Rotary Knob

SoundOff Series 500 which has Built-in bluePRINT functionality, can control two lightbars without an external BOB, enhanced I/O capability utilizing the same small footprint.

Features:

• Load Shed
• Matrix programming
• Scalable architecture allows the addition of up to 40 discrete inputs, 24 OBD inputs and 50 outputs
• Control of two lightbars without the need for an external breakout box, or control additional lightbars using external BOBs
• USB programmability
• With the newly-released SoundOff Signal Central bluePRINT software app, standard siren is fully expandable and customizable. Also allows real time diagnostics and firmware updates

Enhanced I/O Capability

• 20 outputs
• 15 of the outputs are solid state, which can be flashed/dimmed and include diagnostic and self-protection features
• Up to 75 amps total internal switching

Additional Features:

• 100 watt dual tone and 200 watt versions
• New mechanical siren tones
• Radio rebroadcast input
• Allows simultaneous use of two control panels with independent microphone inputs
• Improved audio quality with high capacitance internal filtering

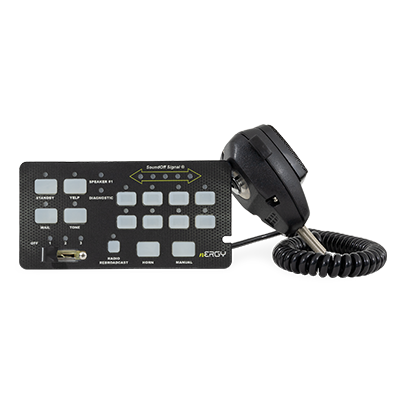

• Available with Rotary, Push Button or Handheld Control Panels

Specifications:

• Audio Output: 1 Channel @ 100 Watts (2 Channels @ 200 Watts Optional).
• Certifications: Meets or exceeds SAE J1849 and CA Title 13 (when used with SoundOff speakers).
• Operating Voltage: 10 - 16 VDC.
• Operating temperature: 40°C to +50°C

DIMENSIONS (REMOTE)

• Handheld Panel - H 3.13" (7.95 cm) x W 7.5" (19.05 cm) x D 1.25" (3.175 cm)
• Amplifier/Relay - H 2.62" (6.66 cm) x W 7" (17.78 cm) x D 7" (17.78 cm)

DIMENSIONS (CONSOLE)

• Console Faceplate - H 3.17" (8.5 cm) x W 7.54" (19.15 cm)
• Amplifier/Relay - H 2.62" (6.65 cm) x W 7" (17.78 cm)
• Cut-out - H 2.81" (7.14 cm) x W 7.10" (18.034 cm)

DIMENSIONS (HANDHELD)

• Panel - H 3.51" (8.92 cm) x W 6.98" (17.73 cm) x D 1.17" (2.98 cm)
• Amplifier/Relay - H 2.62" (6.66 cm) x W 7" (17.78 cm) x D 7” (17.78 cm)

WARRANTY

SoundOff Five-year warranty
