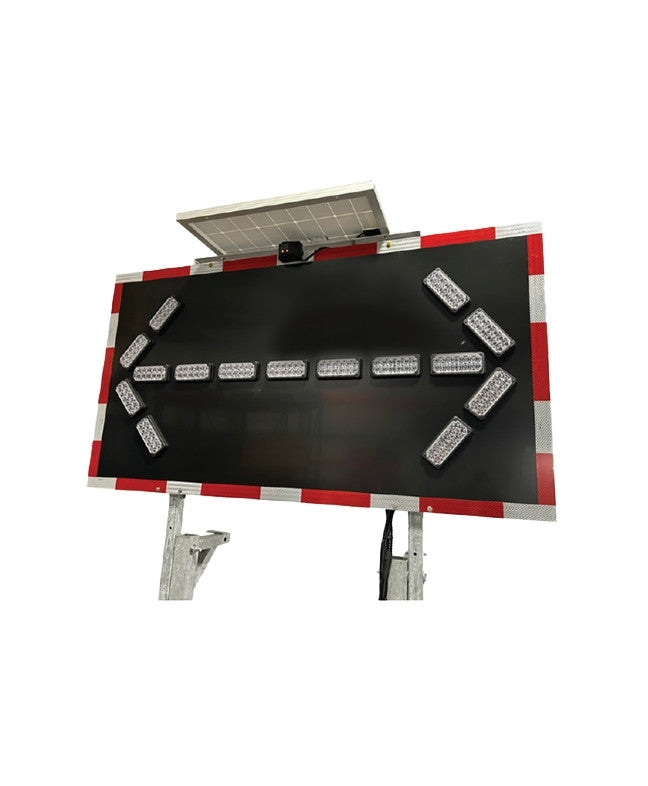

SoundOff Smart Arrow Board
Expected Delivery: 2–4 weeks (custom built-to-order; call for update 2 weeks after order)
Advanced AI-Powered Traffic Management Solution
The SoundOff Smart Arrow Board is engineered to enhance safety in work zones, emergency response environments, and high-traffic areas. Leveraging AI-driven Zone Command technology, this smart arrow board delivers real-time alerts and precise traffic control to protect personnel and guide vehicles efficiently.
With a focus on visibility, intelligence, and adaptability, the Smart Arrow Board combines high-performance LED lighting with optional AI monitoring to create a safer and more responsive traffic management solution.
Key Features & Benefits
Powerful LED Illumination
-
Equipped with 15 mpower® 7x3 lights in tricolor configurations for wide-angle, 180° visibility.
-
Optional 15 nFUSE® 7x3 P lights support single and dual configurations.
-
Rugged silicone lenses provide durability in all conditions.
-
Fully compatible with the bluePRINT® control system for arrow-to-arrow synchronization and audible alerts.
AI-Powered Safety with Zone Command
-
The optional Zone Command AI Camera System detects approaching vehicles, calculates stopping distances, and predicts potential collisions.
-
When a vehicle is on a collision course, visual and audible alerts are triggered to protect workers and emergency personnel.
-
Provides critical real-time information to enhance situational awareness and response times.
Flexible Configuration Options
-
Arrow Board with bluePRINT®: Allows custom light configurations and arrow-to-arrow synchronization.
-
Arrow Board with bluePRINT® + AI Zone Command: Adds AI monitoring, audible alerts, and camera system components.
-
Retrofit Kit (ESADW0007): Update existing boards with 10 tricolor mpower® 4x2 fascia lights (green/amber/white), including arrow synchronization, power connectors, and Zone Command module.
Technical Specifications
Amperage Draw: 28.5 amps peak
Operating Temperature: -40°F to 149°F
LED Options: Single, Dual, Tricolor
LED Colors Available: Red, Amber, Green
Dimensions: 78” x 42”
Input Voltage Range: 10–16 Vdc
Switching Current: Max 100 amps
Certifications: MUTCD Compliant, Florida Standard Compliant APL# 102-085-003
For certifications on the lights, visit mpower® 7x3 or nFUSE® 7x3 P Light pages.
Request return via email: info@forgesafetypse.com
Warranty: Products will be repaired or replaced at SoundOff’s discretion.
Note on Custom Built-to-Order Items: Custom products generally cannot be returned unless damaged. All such orders are final.
