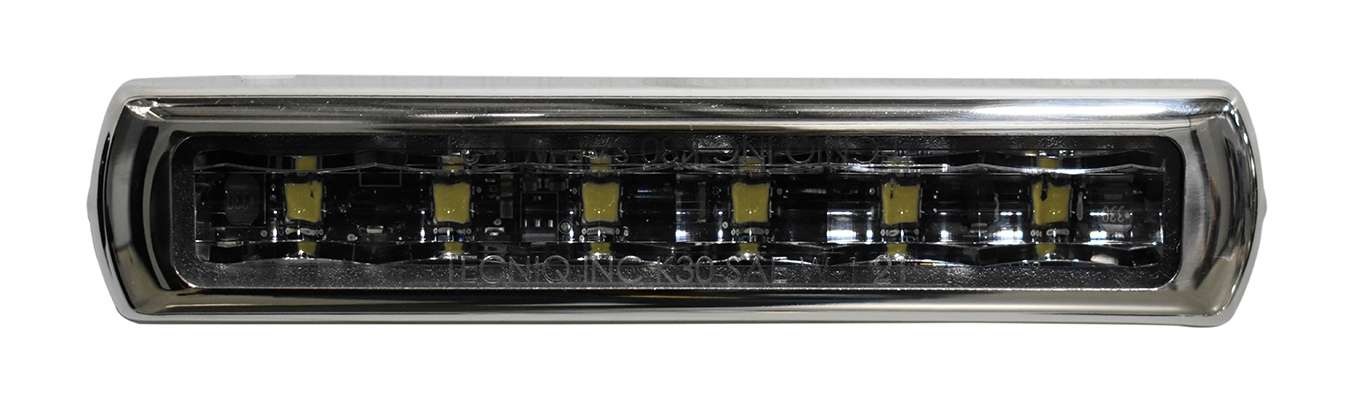

TecNiq K30 : Grille Light

The TecNiq K30 Grille Lights are high-performance, durable lighting solutions designed for emergency vehicles, work trucks, and trailer applications. With a robust, heat-resistant body and advanced LEDs rated for up to 100,000 hours, these lights ensure reliable performance in demanding environments. The IP68-rated design protects against dust and water, while the UV-resistant polycarbonate lens enhances durability. Easy to mount and offering 21 color and lens combinations, the K30 series delivers unparalleled versatility and style.

Features:

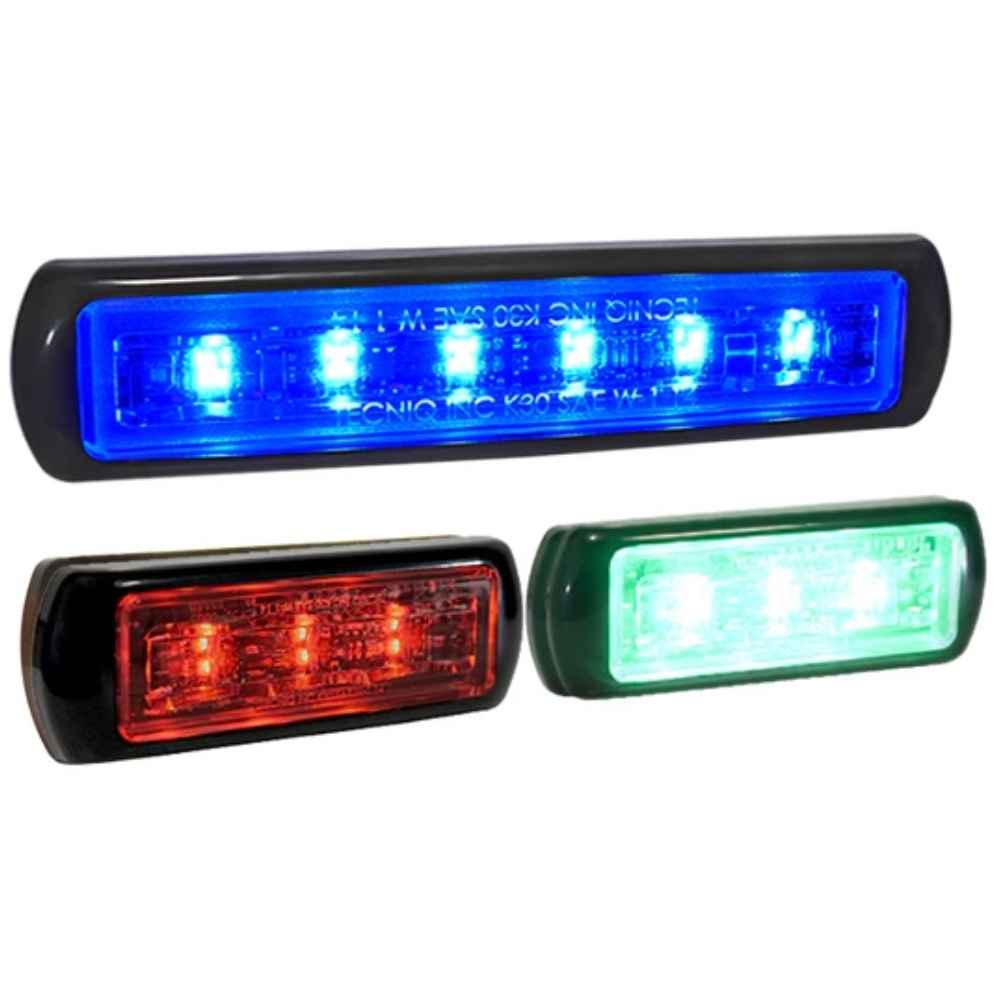

• Available in 3, 6, or 12 LED configurations with various color options.
• High-powered LEDs with a rated lifespan of 50,000 - 100,000 hours.
• IP68-rated for superior dustproof and waterproof performance.
• Durable UV-resistant polycarbonate lens.
• Stainless steel trim ring option for added style and durability.
• TecSeal Urethane Potting for guaranteed circuit board protection.

Specifications:

• Voltage: 9–32 VDC
• Dimensions:
  • 3 LED: 3.57" x 1.26"
  • 6 LED: 5.67" x 1.26"
  • 12 LED: 5.67" x 1.79"
• LED Colors: Red, Amber, Green, Blue, White, and dual-color options.
• Lumens Output:
  • 3 LED (White): 1152 lumens
  • 6 LED (White): 2304 lumens

How to Install:

1. Mount the grille light securely on the vehicle’s surface.
2. Connect the wires to your vehicle's electrical system (black for ground, red for power, white for flash pattern programming).
3. Test and program the desired flash pattern as needed.
